APPLICATION

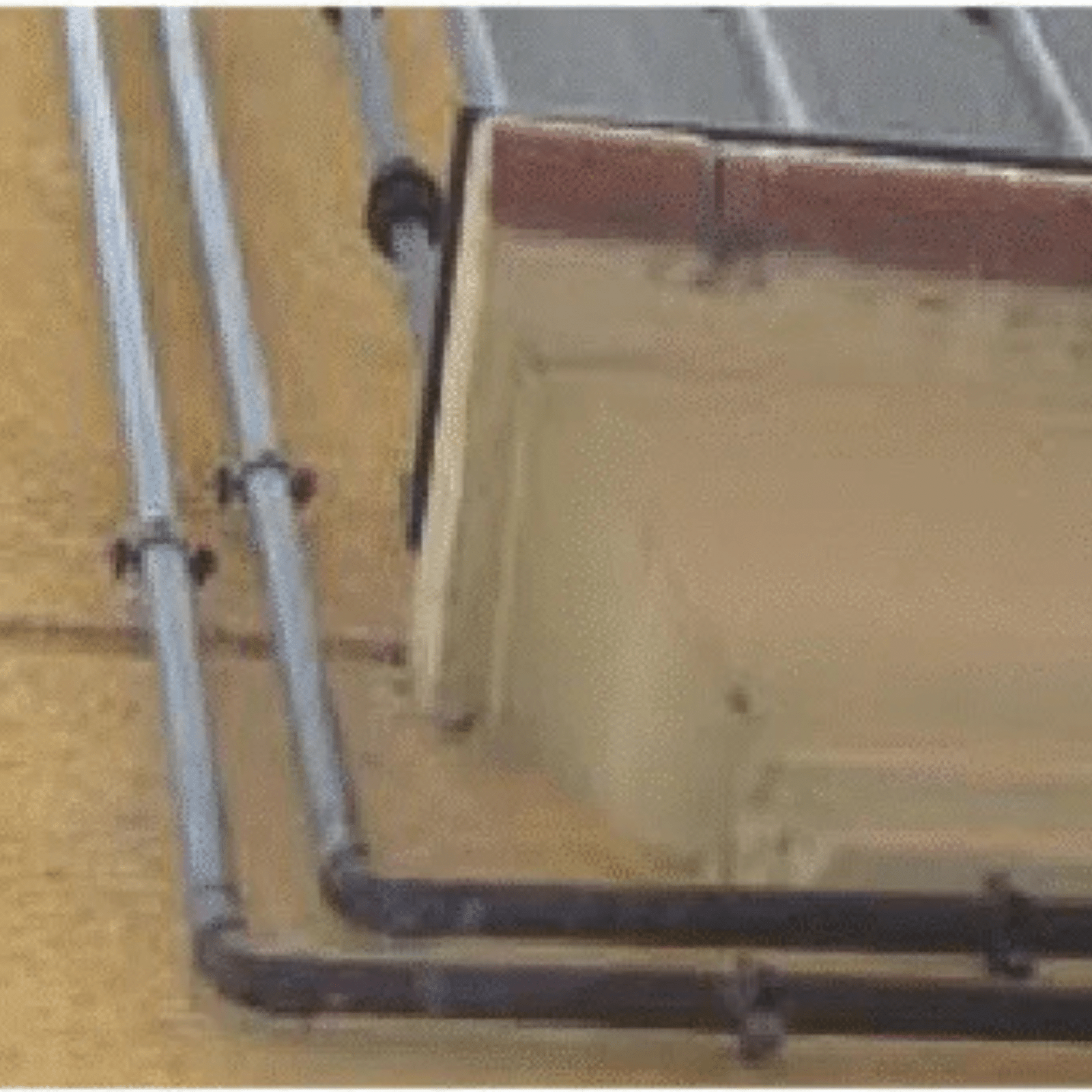

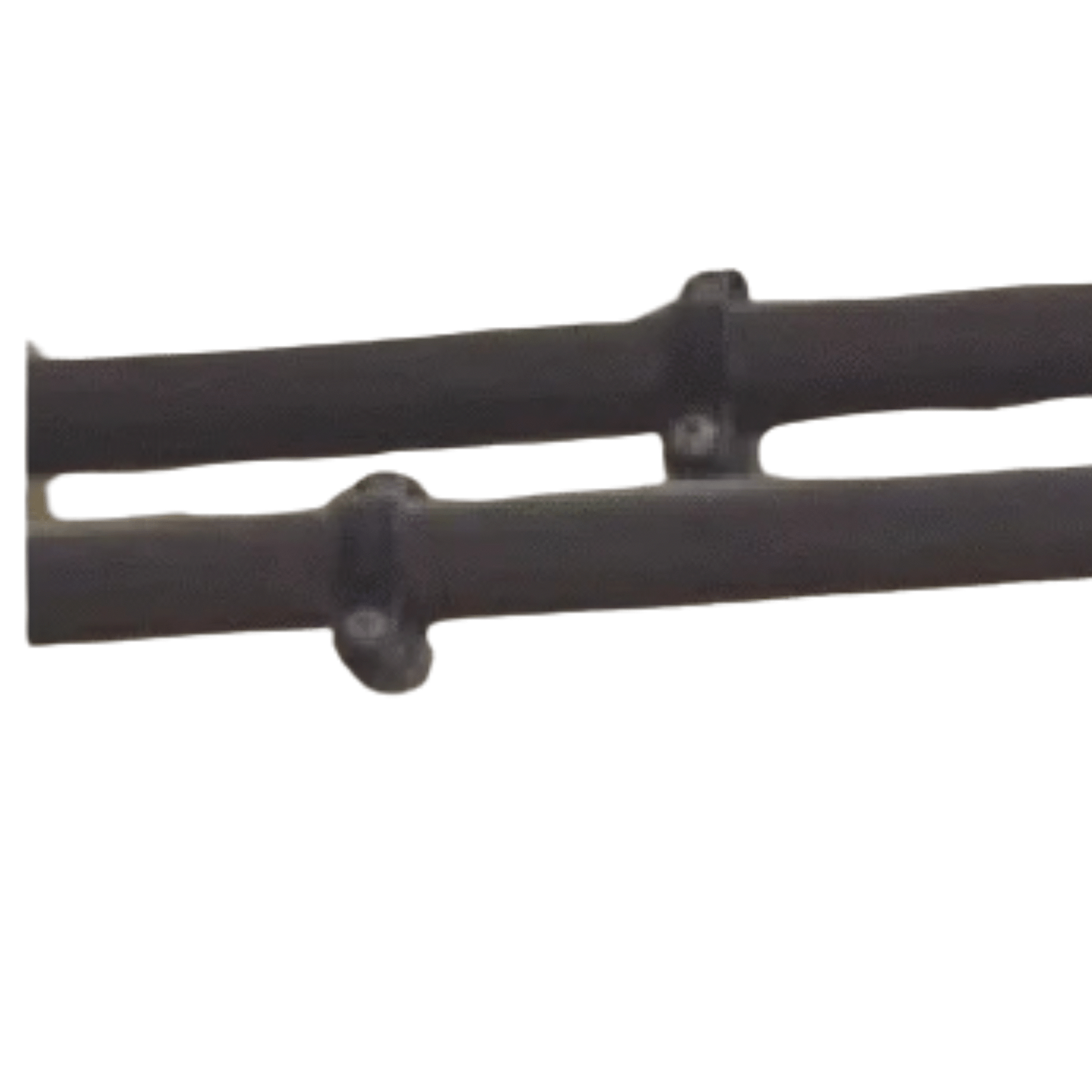

TWO BOLT PIPE CLAMP WITH LINING is recommended for suspension of cold pipelines or hot lines where no insulation is required.

MATERIAL

Mild Steel. Also, other materials can be provided on request.

CONSTRUCTION

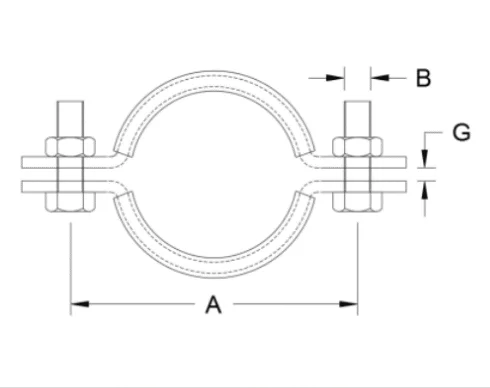

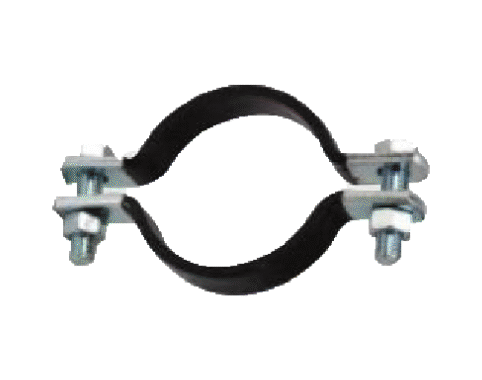

TWO BOLT PIPE CLAMP WITH LINING consists of two mild steel flat bars bent to shape and held together by two bolts. Reduces noise up to 18 dB.

Description

APPROVALS:

ANSI/MSS SP-58 & SP-69(Type 4)
Federal Specification WW-H-171E & A-A-1192A (Type 4)

MAXIMUM TEMPERATURE: -20°C to 110°C

FINISH AVAILABLE

Plain, Electro-Galvanized, Hot Dip Galvanized & Zinc Flake.
