APPROVALS:
ANSI/MSS SP-58 & SP-69(Type 4)
Federal Specification WW-H-171E & A-A-1192A (Type 4)
MAXIMUM TEMPERATURE:
343°C (650°F)
FINISH AVAILABLE
Plain, Electro-Galvanized, Hot Dip Galvanized & Zinc Flake.
APPLICATION

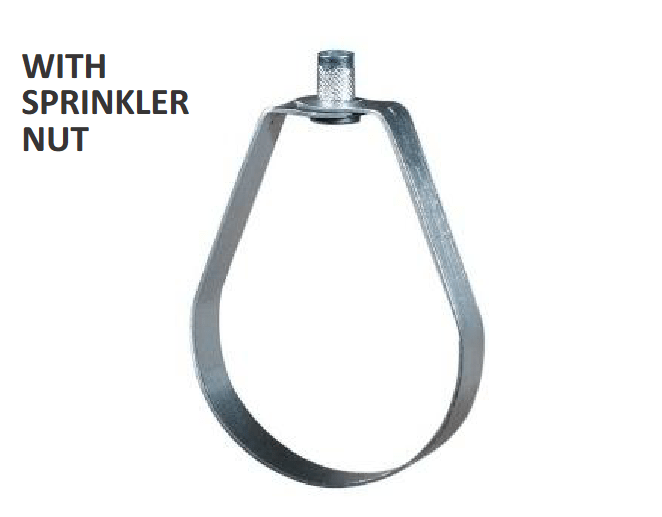

A SPRINKLER HANGER is recommended to provide vertical support to non-insulated piping systems. By adjusting the position of the sprinkler nut on the hanger rod at the top of the hanger, pipe elevation can be altered.
MATERIAL
Mild Steel. Also, other materials can be provided on request.
CONSTRUCTION
A SPRINKLER HANGER consists of a piece of mild steel shaped to support pipe. Gives double thickness at the support. Most suitable for fire extinguishing pipes installation.
Tag:
Fire Protection Supports, HVAC & Plumbing, Pipe Hangers, Pipe Support Accessories, Sprinkler Hangers, Sprinkler System Components
Brand:
Tembo
