MAXIMUM TEMPERATURE:
343°C (650°F)
FINISH AVAILABLE
Plain, Electro-Galvanized, Hot Dip Galvanized & Zinc Flake.
APPLICATION

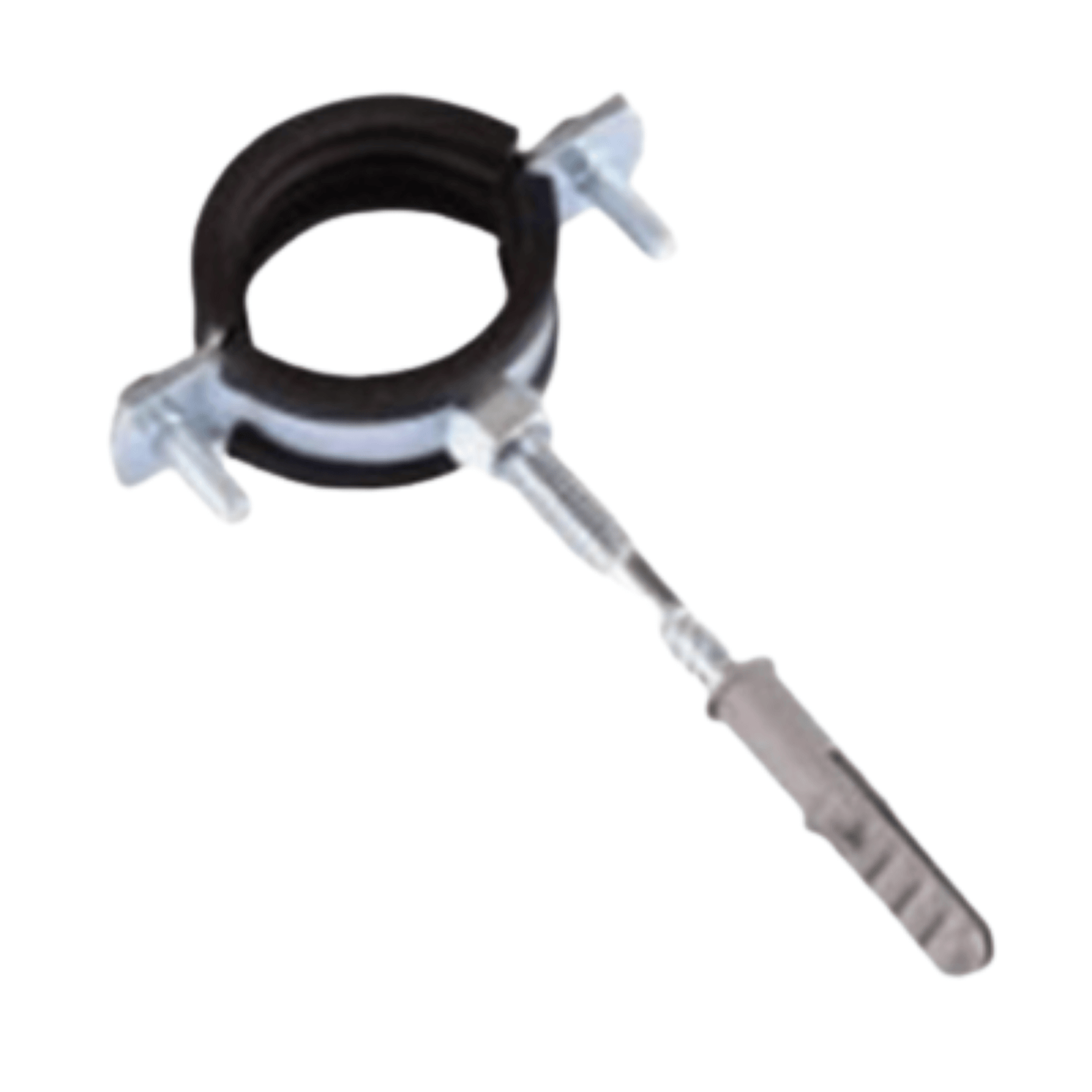

PIPE HANGER WITHOUT LINING-LIGHT DUTY WITH STUD is recommended for non-insulated stationary pipelines in either a horizontal or vertical position. It can be used for supporting pipes along roof, as well as wall.
MATERIAL
Mild Steel. Also, other materials can be provided on request.
CONSTRUCTION
PIPE HANGER WITHOUT LINING – LIGHT DUTY WITH STUD consists of piece of carbon steel shaped to wrap around the pipe, made from shaped carbon steel plate. The selection of the proper 3-Bolt PIPE CLAMP depends upon the temperature of the piping system & load to be carried. Permits installation before and after pipe is in place.
Tag:
HVAC & Plumbing Supports, Industrial Piping Accessories, Light-Duty Pipe Hangers, Pipe Hangers with Stud, Unlined Pipe Supports
Brand:
Tembo
