APPROVALS:
ANSI/MSS SP-58 & SP-69 (Type 10)
Federal Specification WW-H-171E & A-A-1192A (Type 10)
MAXIMUM TEMPERATURE:
-20°C to 110°C
FINISH AVAILABLE
Plain, Electro-Galvanized, Hot Dip Galvanized, Zinc Flake & Epoxy Coated.
APPLICATION
PIPE HANGER WITH EPDM LINING is recommended for non-insulated stationary pipelines in a horizontal position. It can be used for supporting pipes along with the roof.
MATERIAL
Mild Steel. Also, other materials can be provided on request.
CONSTRUCTION

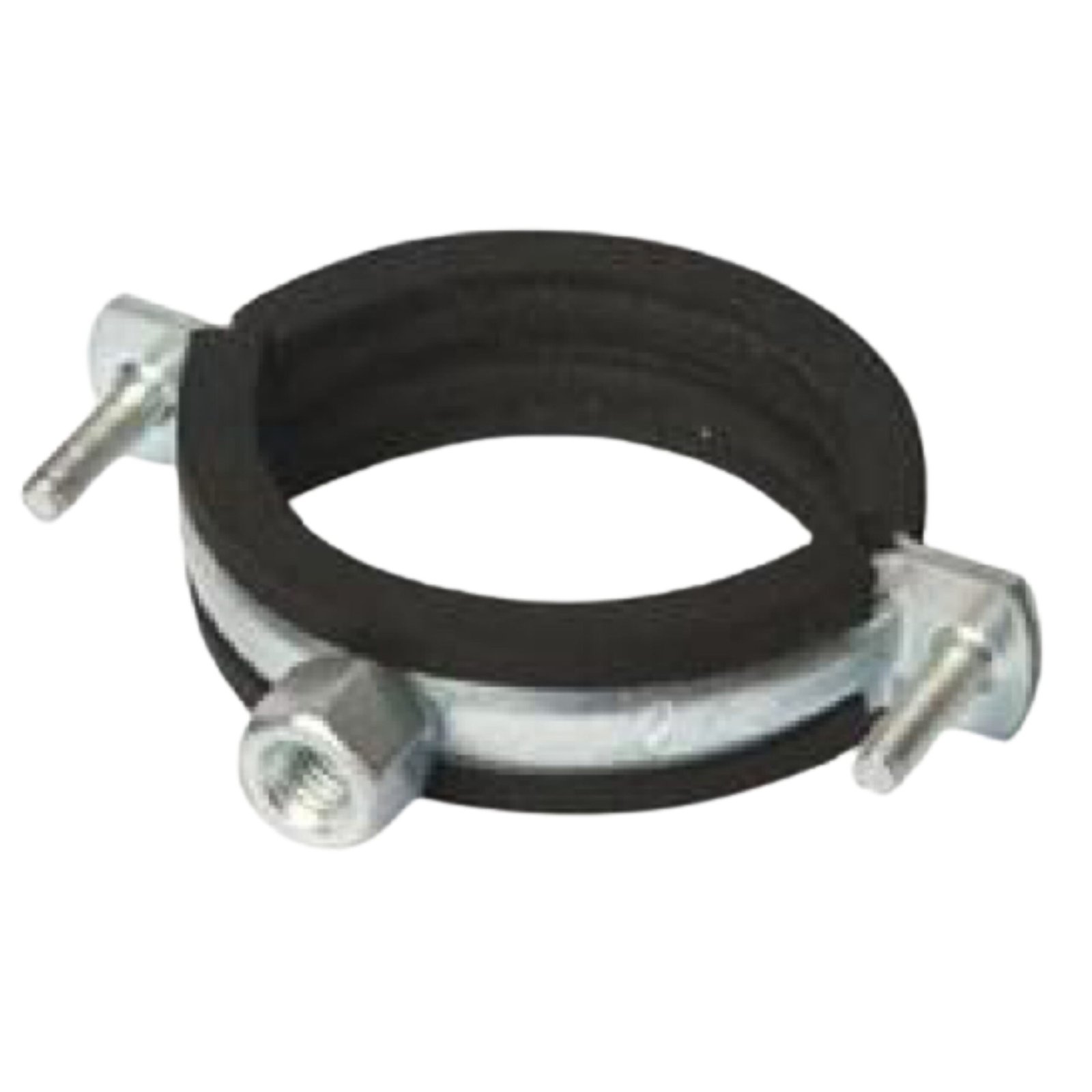

PIPE HANGER with EPDM lining consists of piece of mild steel shaped to wrap around the pipe. The selection of the proper PIPE HANGER WITH EPDM LINING depends upon load to be carried. Permits installation before and after pipe is in place. Reduces noise up to 18 dB.
