Description
APPROVALS
ANSI/MSS SP-58 & SP-69(Type 1)
Federal Specification WW-H-171E & A-A-1192A (Type 1)
MAXIMUM TEMPERATURE: 343°C(650°F)
FINISH AVAILABLE
Plain, Electro-Galvanized, Hot Dip Galvanized, Zinc Flake & Epoxy Coated.
APPLICATION
A CLEVIS HANGER provides for sizeable loads to be supported and for an elevation adjustment depending upon the pipe diameter. The lower nut adjusts the piping to the proper elevation and the upper nut, when locked into position, prevents loosening due to vibration.
MATERIAL
Mild Steel. Also, other materials can be provided on request
CONSTRUCTION

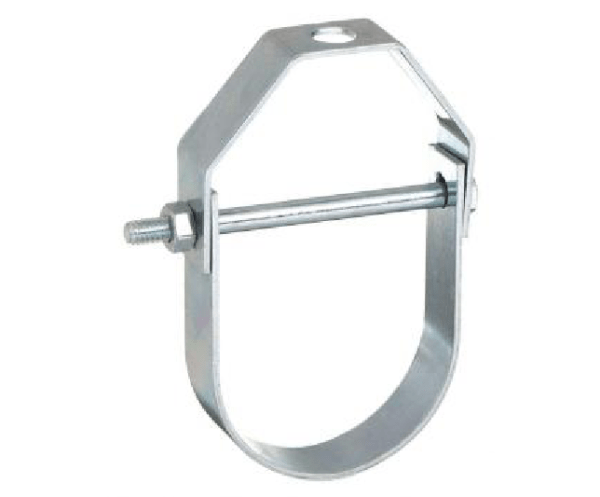

A CLEVIS HANGER consists of a yoke and a support strap made from shaped Mild steel strip and a joining bolt. 15° swing in either direction allows pipe to easily feed through. Pipe will not pinch when installing. Engineered design aligns bolt holes for quicker overhead installation.
